Bricycle

A bicycle in zero gravity can be balanced or steered but not both

Balancing a bicycle and steering it around are usually considered separate challenges to overcome by a learning rider. Balance problem can be removed using springy training wheels that counter the toppling torque by gravity. But then one can't simultaneously maintain balance and control the position of the wheels by steering.



Draft of the paper

submitted to

Journal of Vehicle System Dynamics  on 4/30/2014




DESCRIPTION

A ‘bricycle’: is a bicycle with springy ‘training’ wheels desgined to resist leaning. Spring stiffness is adjustable. Zero stiffness (free leaning) effectively reduces the bricycle to a bicycle. At high stiffness (locked spring, no leaning) the bricycle is effectively a tricycle.  Bricycle was intended to provide a smooth transition from tricycle to bicycle, say for learning how to ride.

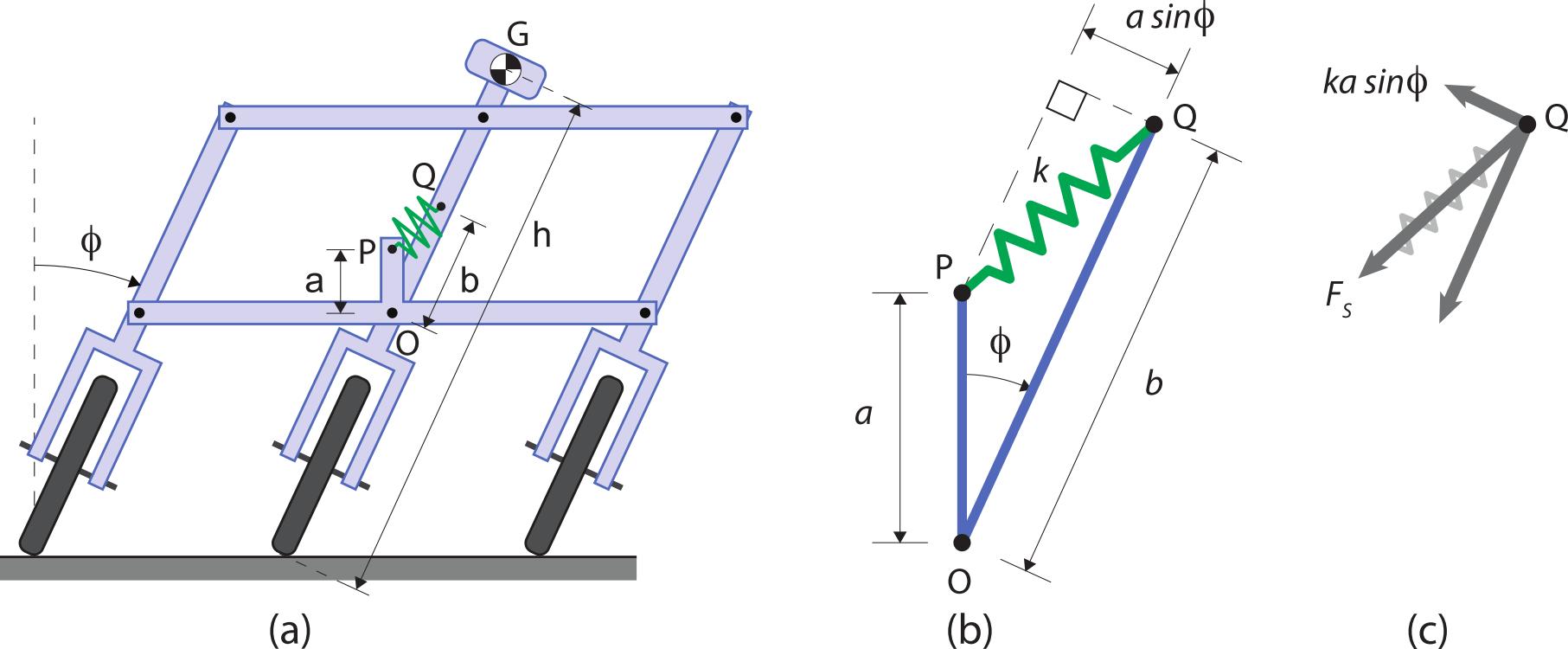

Springy-training wheel suspension. All the rear wheels are connected to each other via a parallelogram mechanism. The connection between points P and Q is effectively a zero rest-length spring. The restoring torque generated by the spring force about point O is kabsin φ, it opposes the destabilizing gravitational torque mghsin φ. Thus the spring mechanism effectively reduces the gravity for leaning/balance.

Spring stiffness can be adjusted by changing the lengths and b. At some intermediate stiffness leaning torque due to gravity is countered and bricycle is in zero gravity for balance purposes. In zero gravity, the bricycle becomes uncontrollable, it is hard to steer while remaining upright. This breaks the smooth transition from tricycle to bicycle.



Lean angles vs. gravity for various speeds: In a steady turn a bike leans into the turn so that the gravity torque balances the centrifugal torque . For zero gravity the steady state turning angle is 90 degrees, i.e. the bike is ям‚at on the ground. For negative gravity (e.g. tricycle like situations) the lean angle is negative (i.e. away from the turn).

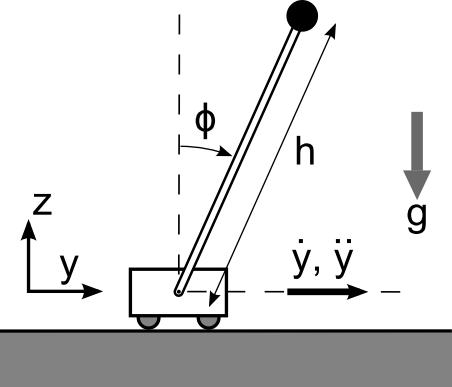

The classical cart and inverted pendulum is a bicycle analogue. The acceleration of the cart is varied in time (say by action of a horizontal force) so as to control both the angle φ of the pendulum (mass m) and the position y of the cart. Cart pendulum problem is same as balancing of a stick on a hand.

The tendency of the pendulum to fall is equivalent to the lean (tilt or roll) instability of the bicycle. Steering a bicycle causes lateral acceleration of the base, analogous to accelerating the cart at the base of the pendulum. Like bicycle, the cart-pendulum looses controllability in zero gravity. The balance problem is gone, and so is the ability to change the position of pendulum's bob.
